Project Description

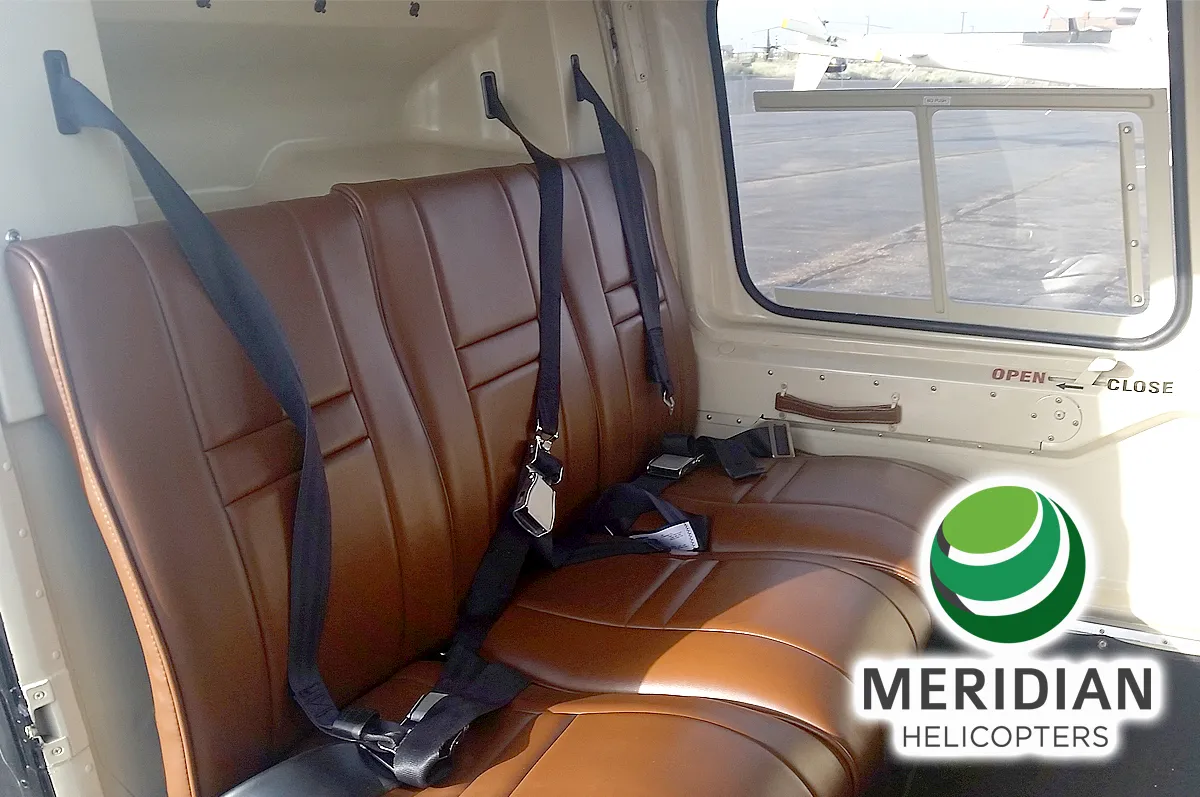

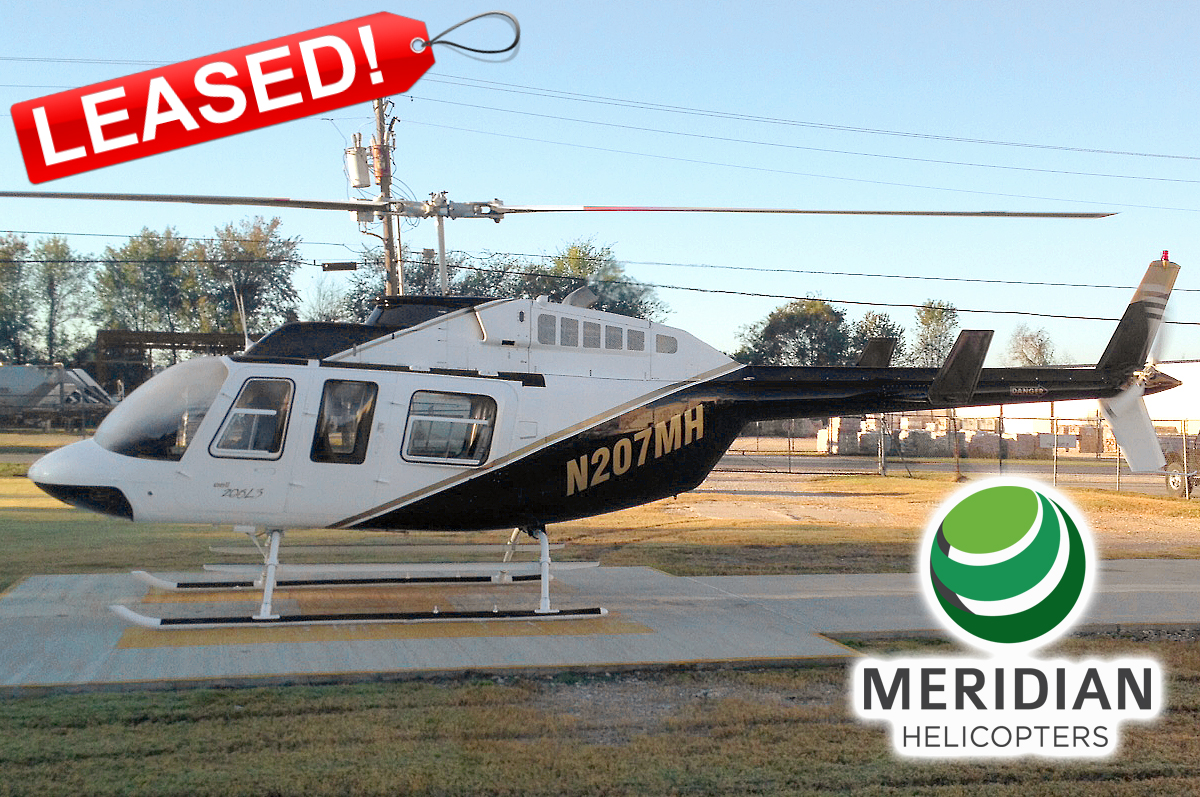

This immaculate utility Bell Helicopter 206L3 is available for immediate sale or lease. Helicopter features a three-tone white with black and gold exterior, with tan vinyl seats and beige interior.

LEASED – 1989 Bell Helicopter 206L3 – N207MH

HELICOPTER INFORMATION

Year 1989
Manufacturer Bell Helicopter
Model 206L3
Price Contact Us
Location Utah, U.S.A.
Serial Number 51303
Registration N207MH
Total Time TTAF 19,858.8 Hrs



EQUIPMENT & ACCESSORIES
High skid gear w/flight steps Particle separator
Rotor brake kit Paravion bleed air heater
Flight instrument group Facet external oil filter
Pulse light system Dart slant avionics panel
Landing light panel Crew & pax rubber mounted wedge windows
Composite baggage door & spacemaker Baggage wall & floor protector
Cabin floor protector Quick disconnect dual controls
Cargo hook provisions Tail rotor pedal lockout with safety covers



AVIONICS
AMS42T audio panel SSD120-30 encoder
Garmin GNS530 GPS ACK451 ELT
KY196A VHF transceiver KT70 transponder
TFM138B FM transceiver



COMPONENT STATUS
Component Hours Remaining OH/RT
Engine: 250C30P
Turbine 581 OH
Wheel 1 606 RT
Wheel 2 606 RT
Wheel 3 1653 RT
Wheel 4 1653 RT
Impeller 12,124 RT
Governor 1061 OH
Fuel Pump 1580 OH
Fuel Nozzle 580 OH
Fuel Control 1080 OH
Bleed Valve 80 OH
MR Hub assy 2162 OH
MR Blade 1 3762 RT
MR Blade 2 3762 RT
MR Mast assy 1580 OH
MR XMSN 3718 OH
Swashplate assy 656 OH
TR Gearbox assy 1582 OH
TR Hub assy 1080 OH
TR Yoke assy 630 RT
TR Blade 1 4448 RT
TR Blade 2 4448 RT
Freewheeling assy 1580 OH
Servo 1 2180 OH
Servo 2 2180 OH
Servo 3 1604 OH



The Bell Helicopter 206L3 Longranger
Performance Dimensions
Cruise speed – 109 knots Size (feet) – 34.2 L x 7.6 W x 9.9 H
Range – 317 Nautical miles Empty weight – 2,200 lbs.
Ceiling – 20,000+ feet Max gross weight – 4,150 lbs.
Rate of Climb – 1,340 feet / minute Fuel capacity – 100 gallons / 743 lbs.
Cabin Lift
Crew (typical) – 1 or 2 External load – 1,250 lbs.
Passenger (typical) – 5 or 6 Internal load – 1,000 lbs.
Storage – 16 cu ft.



Download Sell Sheet (PDF)
